Περιγραφή

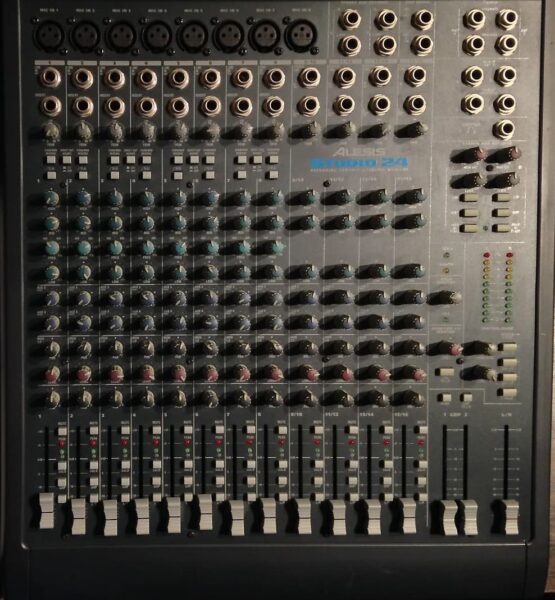

Studio 24 provides eight input channels for mono audio sources, and four stereo input channels for dual-channel devices
like synthesizers, along with two stereo groups for sub-mixes.
Studio 24’s eight hybrid/discrete phantom-powered mic preamplifiers are designed to meet the challenges of 20-bit digital
recording, with excellent sonic quality, low noise (-128.5 dBm) and high headroom with more than 60dB of gain.
It provides eight individual XLR inputs, each with its own switchable direct output, making the Studio 24 perfect
for applications that require you to route multiple audio sources simultaneously.
• Frequency Response: 20Hz – 50kHz ± 0.5dB
• Equivalent Input Noise: -128.5dBu
• THD+N: MIC/LINE to L/R Master Out <0.0025
• Signal To Noise: 90dB
• Dynamic Range: 108 dB
• Front Panel Controls: Mic/Line Gain x 12, Hi EQ x 12, Mid EQ x 12, Mid EQ Sweep x 8, Low EQ x 12, Aux Send 3 x 12, Aux Send 4 x 12, Mon 1/2 x 12, Mon Pan x 12, Channel Pan/Bal x 12, Channel Faders x 12, Group Faders x 2, L/R Fader, Mon Return x 2, Aux Return x 2, Solo Master, CR level, Phone level
• Front Panel Switches: Chan/Mon reverse x 8, Direct Out Source x 4,75kHz x 8, Mute x 12, Solo x 12, Group Assign x 12, L/R Assign x 12,Aux Return L/R Assign x 2, Aux Return Group Assign x 2, Aux Return SIP x 2, Monitor Link to L/R, Group Link to L/R, Group Mono, CR Source select x 4.
• Rear/Top Panel Jacks: Mic In on XLR x 8, Line In on balanced 1/4″ x 8, Channel Inserts on 1/4″ x 8, Stereo Channel In on 1/4″ x 8, Stereo Aux Returns on 1/4″ x 4, Aux Sends on 1/4″ x 2, Group Outputs on 1/4″ x2, Group Inserts on 1/4″ x 2, Main Outputs on 1/4″ x 2, Main Inserts on 1/4″ x 2, Tape Inputs/Direct Outputs on phono (RCA) x 16, Main Outputs on phono (RCA) x 2, 2-Track Tape Inputs on phono (RCA) x 2, Control Room outputs on 1/4″ x 2, Monitor outputs on 1/4″ x 2.
• Front Panel Headphone: 1/4″ TRS
• Power Supply: 120VAC Internal Transformer
• Dimensions (WxHxD): 15″ x 17″ x 4.25″ (381mm x 432mm x 108mm)
• Weight: 14 lbs. (6.5kg)
