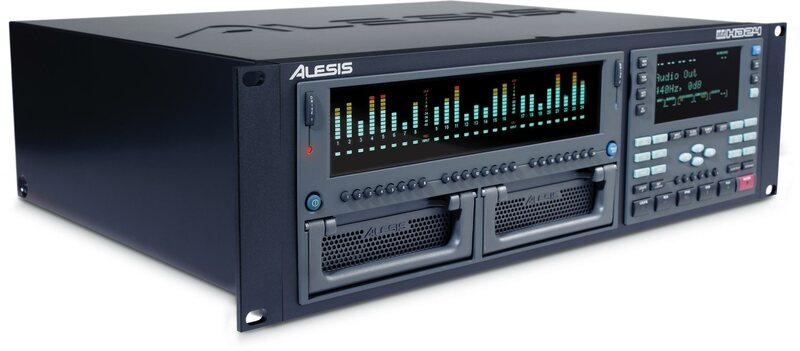

ALESIS ADAT HD24 Digital Multitrack Recorder

Περιγραφή

Ψηφιακή Συσκευή Εγγραφής Πολλαπλών Τροχιών.

24 Track Digital Multitrack Recorder.

Key Features and Benefits:

MEDIA Any internal IDE hard drive.

TRACK COUNT 24 tracks at 24-bit/48kHz, 12 tracks at 24- bit/96kHz

SAMPLE RATES Digital: 44.1–96kHz. Analog: 44.1–48kHz (HD24).

Upgrading HD24 with the Alesis EC-2 will allow you to record at 882/96k via the first 12 1/4” TRS connections.

Frequency response: 22Hz–22kHz +0/– 1dB.

Signal to Noise Ratio: 103 dB AWeighted, Analog In to Analog Out.

Dynamic range: 103dB A/D, >103dB D/A (A-weighted).

Distortion: <0.003% THD+N.

Power consumption: 60 Watts Max (100-240 V AC/50-60 z), 20 Watts Max in Stand-By Mode.

Input levels: nominal +4dBu, maximum +19dBu.

Pitch control: +100 cents/–200 cents, min-max 30– 50kHz (30–100kHz with version 2.0).
